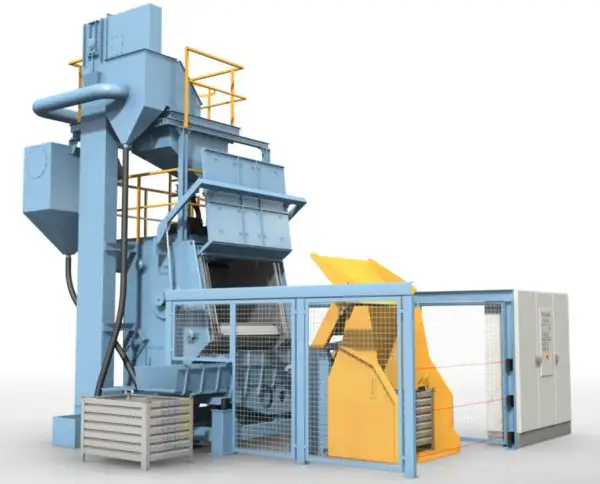

Tumblast shot blasting machine

Tumblast shot blasting machine

Tumblast shot blasting machine is a variety of shot blasting machine. Blasting machines are available in various sizes, different models and they all have different applications for purposes. If we have small to medium size metal components to do shot blasting in bulk or small batches so tumble shot blasting machine is the best solution for that.

The tumblast shot blasting machines have a special rubber belt which is having an anti-abrasive property, arranged as a cradle that receives the metal components to be treated and with the movement of the metal parts which are in the constant tumble.

When the shot blasting machine is in operation the metal components are hit by a continuous spray of jet abrasive media propelling at high speeds achieved by a centrifugal wheel connected to an electric motor. Loaded metal components receive a uniform shot blasting treatment on all sides and corners as they continue changing their position due to moving tumble.

Features of Tumblast shot blasting machine

1. Compact design
2. Simple operating principle
3. High performance shot blasting application
4. Ergonomic maintenance
5. Steel belt conveyor
6. Removal of shots, sand, or scale via vibrating conveyor
7. Continuous shot removal
8. Special design for aluminum abrasive

Applications of tumblast shot blasting machine

1. Tumble shot blasting machine is ideal for cleaning and reconditioning automotive components such as brakes, gears, and shock absorbers. this  Removes the dust collector the dust accumulated during years of use which is allowing recovery of the components.
2. The idea for Shot-peening purposes of spring and mechanical elements. The tumblast shot blasting process allows compressing the surface layer of springs and mechanical elements.
3. Cleaning and deburring of Casting Components in Foundries. Almost all the plants have a tumble type shot blasting machine to eliminate the ceramic layers deposited on the casting components.
4. Highly effective in the Cleaning of tools. Welding residues and deposits are removed effectively from the surface of the tools by the tumblast shot blasting process.

Specification of Tumblast Shot Blasting Machine
