Cartridge Filter

Introduction to Cartridge Filter

A cartridge filter is a critical component of any modern filtration system. It serves as a replaceable barrier designed to capture particles, sediments, and contaminants from liquids or gases. These filters are widely used in applications ranging from household water purification to large-scale industrial processing. Their modular nature allows for easy installation and maintenance, making them a cost-effective and reliable solution for ensuring fluid quality and system longevity.

What is a Cartridge Filter?

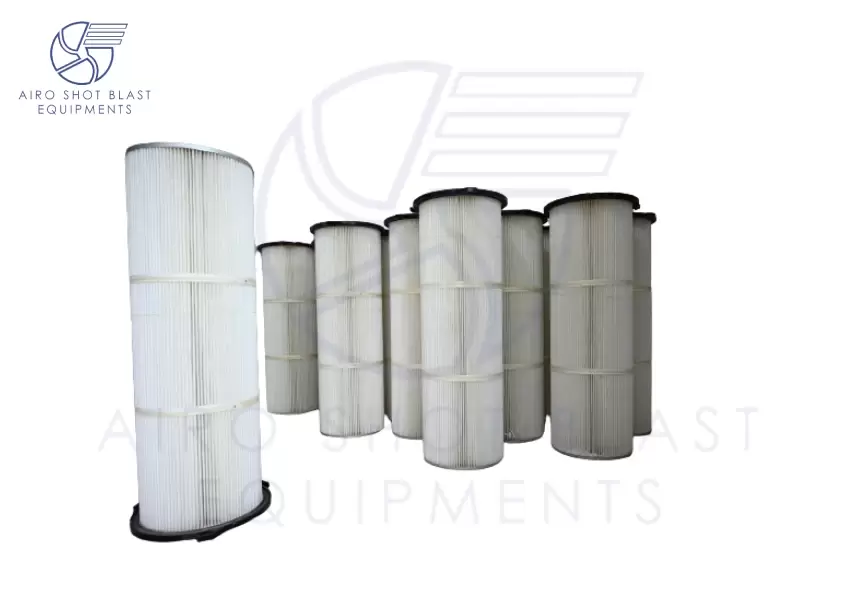

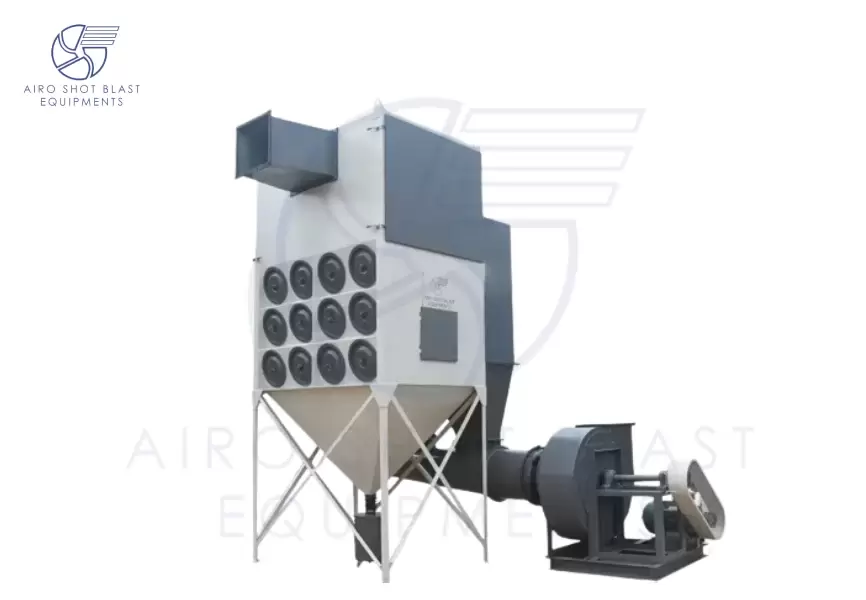

Cartridge filters are cylindrical devices inserted into filter housings to remove unwanted substances from fluids. They are typically made from materials such as polypropylene, polyester, cellulose, or carbon, depending on the intended use. Cartridge filters are available in various types—pleated, string-wound, melt-blown, and carbon block—each designed for specific filtration requirements.

Working Principle of a Cartridge Filter

The operation of a cartridge filter is straightforward but highly effective. As the fluid flows through the cartridge, contaminants are captured within the media:

• Surface Filtration: In pleated cartridges, particles are trapped on the surface layer.

• Depth Filtration: In string-wound or melt-blown cartridges, particles are captured throughout the depth of the material, improving dirt-holding capacity.

• Adsorption: In carbon block filters, contaminants like chlorine and VOCs are removed through chemical adsorption.

The filtered fluid then exits the housing, free from sediments and impurities. Cartridge filters can have either a nominal or absolute micron rating, defining their particle retention accuracy.

Types of Cartridge Filters

1. Sediment Filters: Ideal for removing sand, rust, and other particulates.
2. Carbon Block Filters: Effective in eliminating chlorine, odor, and organic chemicals.
3. Pleated Filters: Offer a high surface area for longer service life and better flow.
4. String-Wound Filters: Suitable for high sediment loads in industrial or commercial systems.
5. Melt-Blown Filters: Constructed for fine particle filtration with depth-loading capability.

Advantages of Cartridge Filters

• High Filtration Efficiency: Removes a wide range of particle sizes, ensuring clean water or fluid output.
• Ease of Installation: Simple replacement process with minimal system disruption.
• Cost-Effective: Long service life reduces frequency of replacement and system downtime.
• Customizable: Available in multiple lengths, diameters, and materials to suit different applications.
• Eco-Friendly Options: Some cartridges are recyclable or made from biodegradable materials.
• Versatility: Suitable for use in water, chemical, oil, and gas filtration systems.

Maintenance and Replacement

Regular inspection and timely replacement are essential for maintaining optimal performance. Typically, a cartridge should be replaced every 3 to 6 months, depending on usage, fluid quality, and type of filter used. A significant drop in pressure or noticeable decrease in flow rate are signs that the filter needs changing.

Steps for Replacement:

1. Shut off the system and release pressure.
2. Open the filter housing.
3. Remove the used cartridge.
4. Insert the new cartridge, ensuring proper alignment.
5. Seal the housing and restart the system.

Environmental Considerations

Many cartridge filters are made from recyclable plastics. Always dispose of used cartridges in accordance with local waste management regulations. For high-contaminant filters (e.g., chemical applications), special disposal may be required.

Customization Options

Manufacturers often offer customized cartridge filters based on:

• Specific micron rating
• Length and diameter
• End-cap styles (DOE, SOE, etc.)
• Material compatibility (for chemical or temperature resistance)

This ensures optimal performance for unique system requirements.
