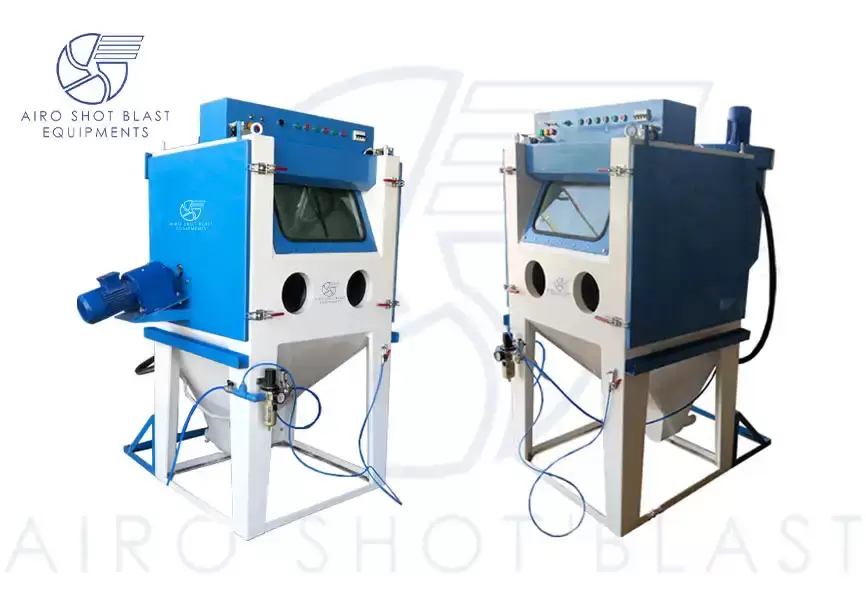

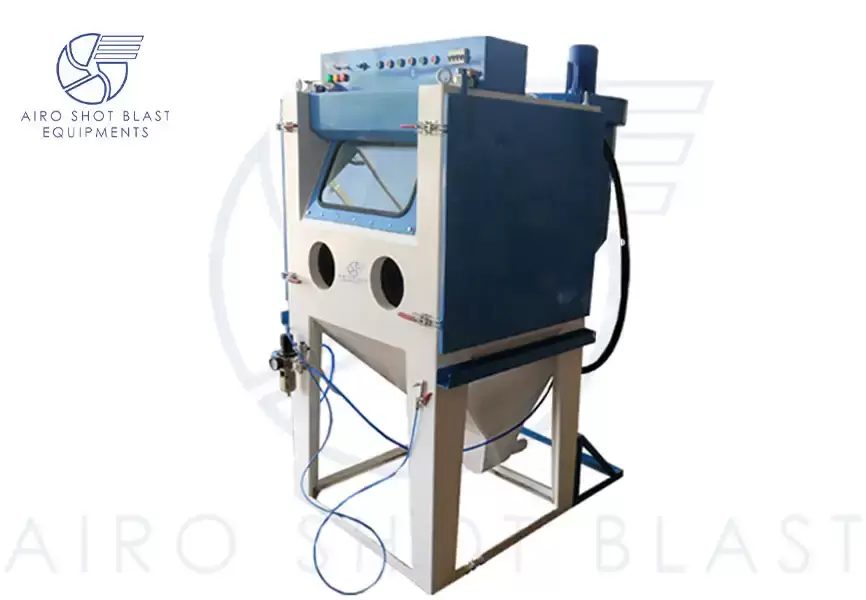

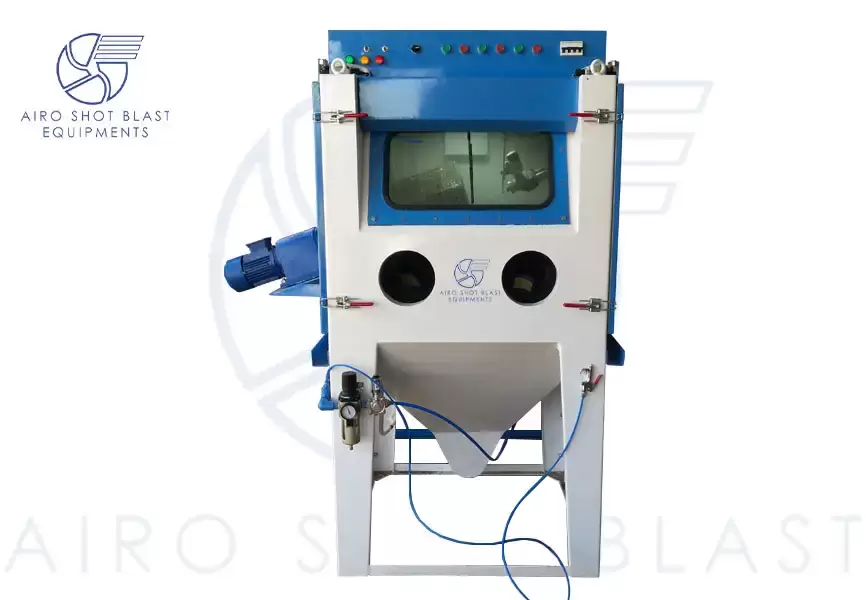

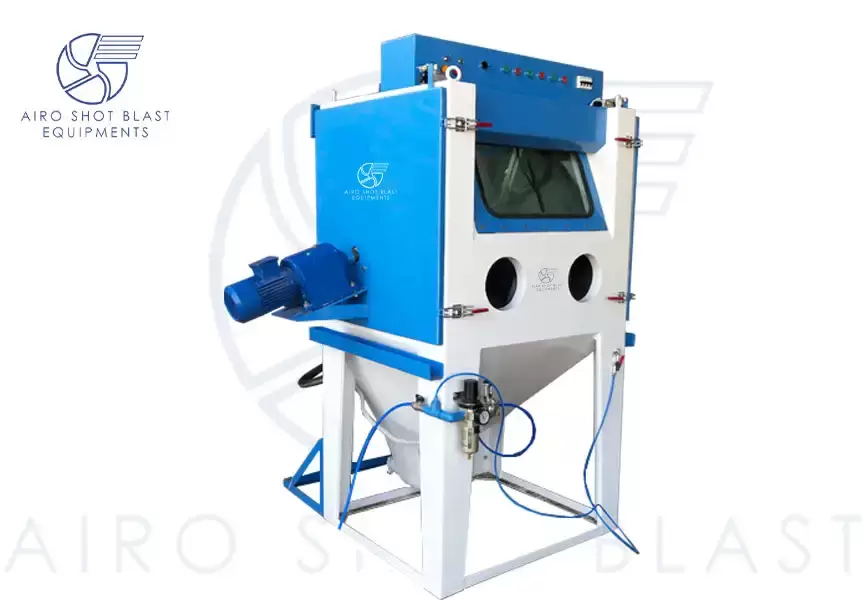

Wet Blasting Cabinet

The wet grit blasting cabinet (Wet Blasting Machine) or high-pressure water blast cabinets are typically used for surface improvement, cleaning, preparation of coatings, deburring, and shot peening. Their circulation of the water/abrasive mixture achieved by high durability sludge pumps, which provide excellent technical and environmental benefits. It works on the reusable abrasive media process, which reduces the cost and time.

The wet grit blasting machine uses a seal-less slurry pump to convert the abrasive media and water into a slurry mixture. This slurry mixture is pump directly to the abrasive blast gun where compressed air pressure moves the mixture with the desired pressure rating.

The exhaust blower filter maintains a negative cabinet pressure that prevents the cabinet mist from escaping during the blasting process. During the process, freshwater is rinsed out on the window after fix interval of time which provides continuous operator visibility through the operator view window. Light enters the cabinet through a sight window located on the top side of the grit blasting cabinet.

No pre-cleaning, a dust-free finish and reduces ‘abrasive impregnation risk’ because detergents are simply added to the wet-blasting slurry.

Applications of wet abrasive blasting

• No dust is involved in the process.
• Fine abrasive media can be used as slurry is being. Safe and single footswitch
• The operation for the easy controlling of the machine. Reduce the risk of abrasive insertion.
• Easy maintenance because of quick-release pump design.
• Burr removal and cleaning without damage to the object surface.
• Surface preparation for hard chrome coatings, bonding composites, and tin and other tool coatings.
• Etch and smooth glass for decorative or functional purposes in houses, hotels, etc.
• Peen objects surface for a bright, clean appearance.
• Clean plastic molds.
• Hole cleaning in printed circuit boards (PCBs).

Types of Wet Blasting Machine

Our company manufactures three standard types of models which can be list as follows:

• Wet Blasting (SWB6060)
• Wet Blasting Machine (SWB9182)
• Wet Blasting Cabinet (SWB11082)

And, Wet Blasting Cabinet can be customized according to the customer’s need/requirement.

We manufacturer Wet grit Blasting Cabinet is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur, and all cities. wet blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc.

SPECIFICATIONS:

WORKING CHAMBER

Height600mm

width600mm

Depth600mm

DOOR OPENING

height500mm

width500mm

OVERALL DIMENSIONS

height1660mm

width800mm

depth1500mm

DUST COLLECTOR(Fabric bag type manual shaking)

Fan Motor                                                1.5h.p

Fan capacity                                            400c.f.m

Filter cloth Area                                       2.0 sq. mt.

Injector office 3mm

Boron carbide Nozzle Short                    6mm

Pressure gauge, air regulator &

Moisture separator fitted                         one no. each

Footswitch & door limit switch             provided for safety interlocking

Compressed air required at 80 PSI         20 c.f.m

(for blasting machine only)

Abrasive storage capacity                        28(1.0)ltrs. (CFT)

Abrasive feed                                            Induction section

Recommended Abrasive Size                  30 mesh to 220 mesh
