- Metal surfaces should be cleared of scale and corrosion.
- surface preparation for all sorts of coating application.
- Remove powder coating and paint.
- Foundry
- Automotive
- Manufacturing and Metal industries.
Leading Supplier & Exporter
Trustseal Verified
ISO Certified
Manufacturer

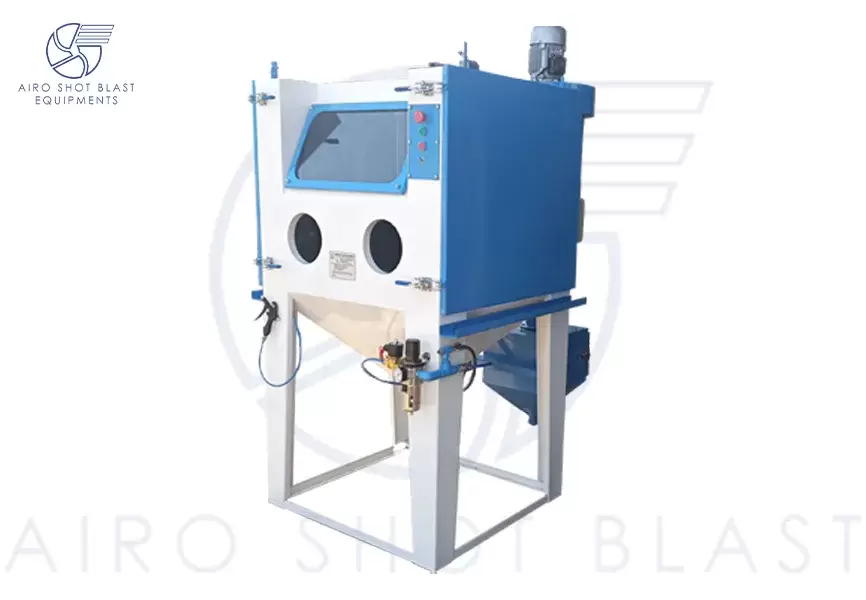

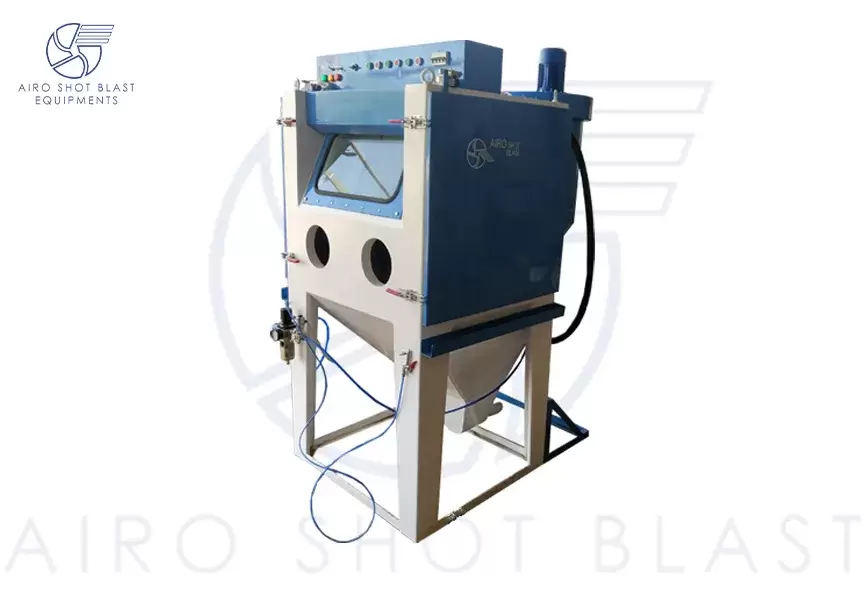

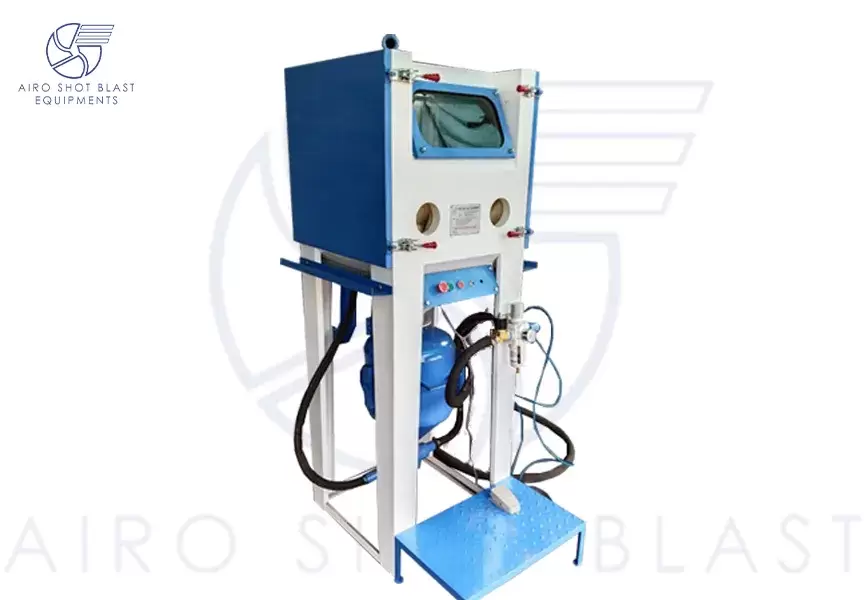

Grit Blaster Cabinet
Grit blasting cabinet is another type of Grit blasting machine that has a cabinet and is a closed form of the machine. In that closed part blasting of contaminants as well as recycling of Abrasive blasting cabinet takes place. There are many different functions which are included like cleaning, recycling as well as the collection of dust particles too.
As grit blasting is used as the abrasive media in the blasting process thus to avoid visibility dust collectors are even connected with the shot blast cabinet. In the Grit blasting cabinet, the operator does not require any safety gadgets like a safety suit, mask, or sand blasting helmet, shoes, gloves, etc. as the whole process is performed inside the cabinet. This makes an eco-friendly, cost-effective, and pollution-free environment.
There are three types of Abrasive Blasting Cabinet which can be listed as follows:
- Suction Blasting Cabinet
- Pressure Blasting Cabinet
- Wet Blasting Cabinet
In these three cabinets working is different based on the process.
In Blasting Cabinet initially start the adjusting switch of the air compressor after that cabinet switch is turned on which supplies to the solenoid valve. Which on compressed air towards the blasting gun.
- Moisturizer Separator- works as removing moisturizer from the air
- Non-return valve- avoid the flow of sand to the Moisturizer Separator
- Air regulator-to regulates air inside the gun & abrasive filter shaken with air.
Grit blasting cabinet Specifications
|
Working Chamber |
PRESSURE Blasting Cabinet (PB) |
SUCTION Blasting Cabinet (SB) |
WET Blasting Cabinet (WB) |
|||||
|---|---|---|---|---|---|---|---|---|
|
APB-9182 |
APB-12090 |
APB-150120 |
ASB-6060 |
ASB-9182 |
ASB-12090 |
AWB-9182 |
AWB-12090 |
|
|
Height |
775 |
900 |
900 |
600 |
775 |
900 |
775 |
900 |
|
Width |
910 |
1200 |
1500 |
600 |
910 |
1200 |
910 |
1200 |
|
Depth |
820 |
900 |
1200 |
600 |
820 |
900 |
820 |
900 |
|
Dust Collector (Motor Power) |
1 HP |
1 HP |
1.5 HP |
0.5 HP |
1 HP |
1.5 HP |
0.5 HP |
1 HP |
|
CFM |
500 |
500 |
800 |
200 |
400 |
600 |
200 |
400 |
|
Filter Cloth Area |
7.5 |
7.5 |
10 |
1 |
2 |
4 |
--- |
--- |
|
Slurry Pump Motor HP |
--- |
--- |
--- |
--- |
--- |
--- |
1 |
1 |
|
Air Jet Orifice mm |
--- |
--- |
--- |
2,3 |
3,4,5.5 |
3,4,5.5 |
3,4,5.5 |
3,4,5.5 |
|
Blast Nozzle mm |
5,6 |
5,6 |
5,6 |
6,8 |
8,10,12 |
8,10,12 |
8,10,12 |
8,10,12 |
|
Abrasive Storage Capacity Liters (CFT) |
28 (1.0) |
42(1.5) |
42(1.5) |
28 (1.0) |
28 (1.0) |
42(1.5) |
42(1.5) |
42(1.5) |
|
Weight in Kg (approx) |
580 |
650 |
760 |
250 |
490 |
490 |
400 |
525 |
Grit Blasting Cabinet Price
We manufacturer Grit Blasting Machine, sand blasting machine, Portable Sand Blasting Machine, shot blasting cabinet, shot blasting machine is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur and all cities. Grit blaster Cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc. Grit Blaster cabinets from shot blaster automate production sequences and improve the work environment.
