- Suction sand blast cabinets provide the greatest cleaning, smoothing, and finishing solution for various coating, painting, and corrosion difficulties.
- They work best when used to provide a range of materials with a decorative or visually pleasing surface finish.
- Suction Blasting Cabinet is used for the removing dust and impurities from casting mold.
- Suction Blasting Cabinet work on low pressure compared to Pressure Blasting Cabinet and it provides convenient surface finishing without damaging.
Leading Supplier & Exporter
Trustseal Verified
ISO Certified
Manufacturer

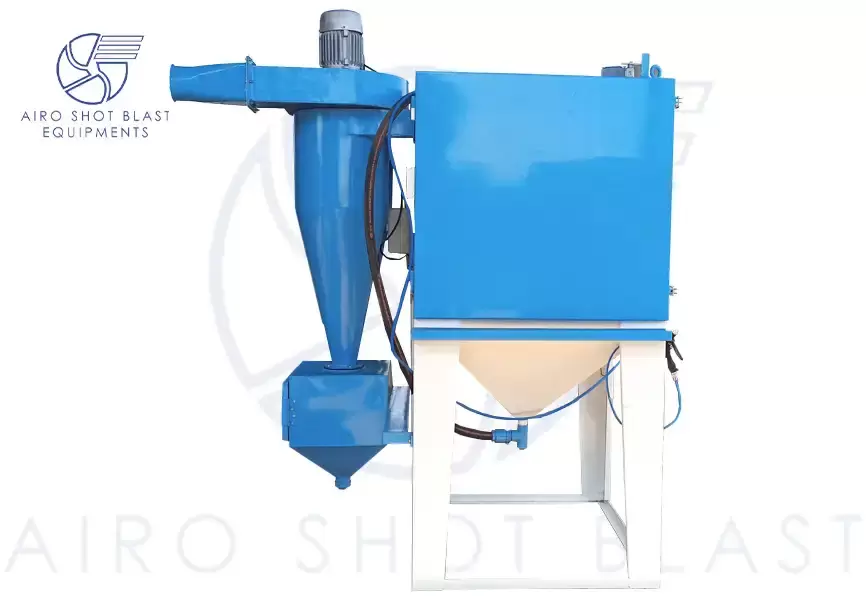

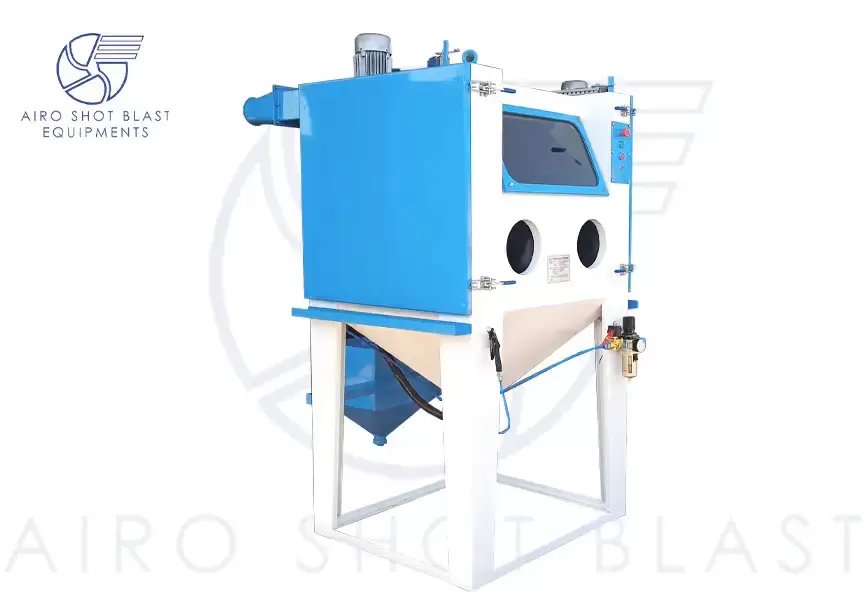

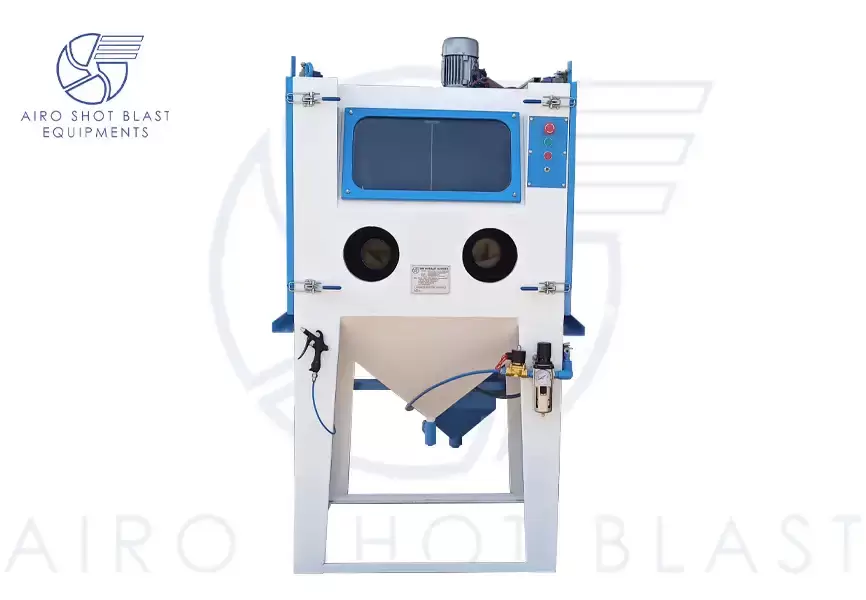

Suction Sand Blaster
Suction Sand Blasting Cabinet is based on the Injection Suction principle of blasting. The industrial Suction Sand blaster cabinet ensures non-stop working and no interruption in the blasting cycle. It is used for light and medium-size components/particles where the surface is to be cleaned or deburred or to provide a fine matte finish. It operates on the Venturi principle to get abrasive from a non-pressurized storage hopper to the blast gun where it is mixed with the compressed air stream and propelled against the work surface or blasting surface.
When we are working with a suction-blast gun, it is simple to recognize, because it has two pipes attached to it, one providing compressed air and one vacuum pipe (abrasive blasting hose) is bringing media into the gun. Pressure-blast nozzles have simply one larger pipe to deliver a mixture of media particles and compressed air.
Suction Sand Blasting Specification
| Description | ASB6060 | ASB9182 | ASB12090 |
| Working chamber(mm) | (l)600x(w)600x(h)600 | (l)900x(w)910x(h)900 | (l)900x(w)1200x(h)900 |
| Door opening(mm) | (w)500x(h)500 | (w)730x(h)675 | (w)800x(h)800 |
| Overall dimension (mm) | (l)1500x(w)800x(h)1660 | (l)1400x(w)1070x(h)2000 | (l)1700x(w)1365x(h)2570 |
| Compressed air required (cfm) | 17 | 20 | 47 |
| Cleaning area (Sqr. Mtr.) | 4-7 | 4-7 | 15-21 |
| Nozzle (mm) | 5/6 | 5/6 | 10 |
Suction Sand Blast Cabinet
The suction sand blasting cabinet system uses the venture principle, integrating an air jet one-half the inside diameter of the nozzle. This generates a negative pressure in the pipe that sucks the abrasive media into the gun body from the media-containing the hopper. A suction blaster can work continuously without shutdowns to refill aluminum oxide abrasive media in the storage hopper and can be easily operated with multiple guns over multiple bodies.
Suction sandblast cabinets provide the ideal cleaning, smoothening, and finishing solution to many coating, painting, and corrosion problems. They are ideally utilized for ensuring a decorative or naturally pleasing surface finish across many materials. Suction systems generally have lower capital costs than a pressure cabinet and use less compressed air, making them appropriate for smaller workshops or lower production environments.
Suction blasting cabinet features are as follows:
- these types of cabinets are of lower cost than the related-sized pressure blasting cabinets.
- A suction blaster has far fewer moving parts and valves than a pressure abrasive blast unit, therefore, more easy maintenance and troubleshooting are possible there.
- Less air and abrasive consumption are there in a removal gun (suction abrasive blast gun) as its air demand is governed by the abrasive air jet, which is almost half the size the same as the blast nozzle diameter.
Continuous blasting is possible in a suction blasting cabinet because we need not think to refill the abrasive media containing hopper again and again in this, whereas in a pressure blast method the consecutive blasting time is decided by the amount of abrasive media present in the storage hopper or pot present at one time.
Suction Sand Blast Cabinet Standard Models are :
- Sand Blast Cabinet SSB-6060
- Sand Blast Cabinet SSB-9182
- Sand Blast Cabinet SSB-12090
We manufacturer Suction Sand blasting Cabinet is a low price in all cities: Delhi, Mumbai, Pune, Rajkot, Kolapur and all cities. Suction blasting cabinet for sale area is all south cities in India, Cities are Bangalore, Pune, Coimbatore, Chennai, etc.
