- Arc Spray Gun is used for best quality coating and metallurgy.
- Arc Spray Gun used in the oil industries, automobile industries, steel industries, and so on.
- Restore used components to their original, or even better, state.
- Recover faulty machined parts.
- In a covering system, provide a superior bond coat.
Leading Supplier & Exporter
Trustseal Verified
ISO Certified
Manufacturer

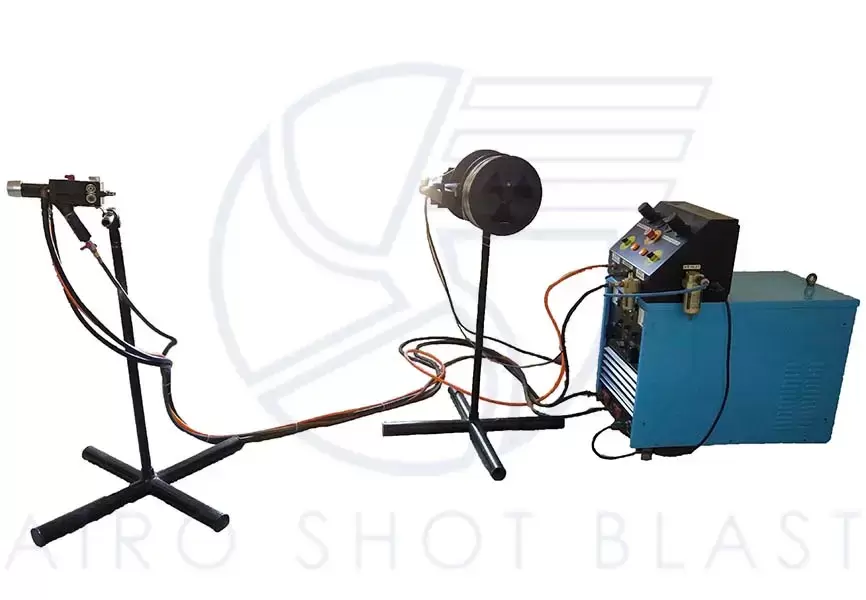

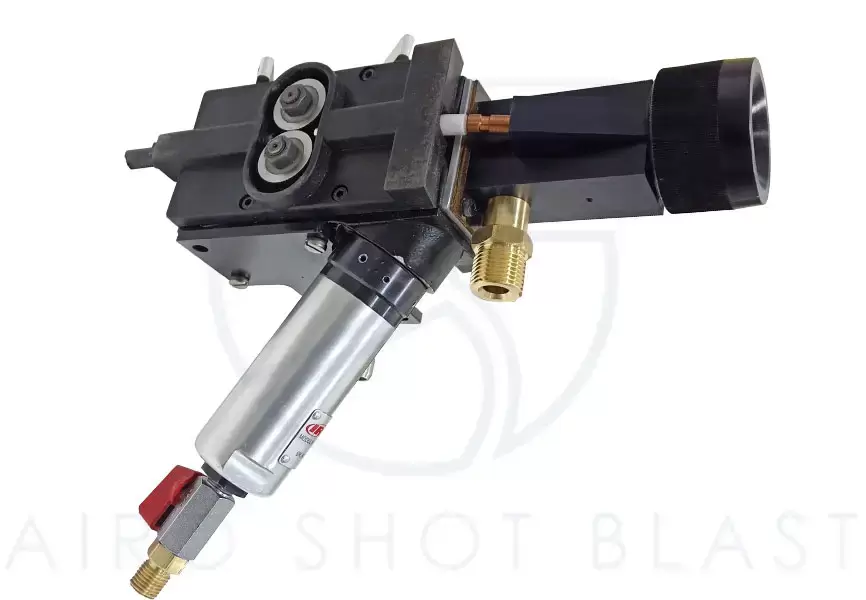

Arc spray gun uses the substance in wire form as feedstock. An electric arc is used to provide the heat source by utilizing two current wires. These zinc wire are fed towards each other so that the electric current gets short circuit and this results in a high temperature of 4000° C. because of this high temperature the tips of supplies wire start decreasing and then this molten metal gets atomized through reduced air or inert gas and stimulate it towards the substrate.
Various coatings
- Nickel-based alloys
- Aluminum, zinc, Al/Zn alloys
- Babbitt alloys
- Iron-based alloys
- Copper slag and copper alloys
There is an advantage of this arc spray coating system is that we can use two separate wires to produce an imitation alloy. Cored wire also can be used with unique features.
Also, there are no effective drive parts in the arc spray gun to wear out, so this is decreasing the weight of the Arc Spray Coating this reduction of moving drive parts eliminates the maintenance cost. There are no air caps, front wire design changes are required which gives repeatable high-quality coatings. The Wire Arc Spraying provides excellent atomization and airflow with a variety of air caps which are created to produce the precise thermal spray model for the task.
Specifications of Arc spray gun
|
DESCRIPTION |
MODEL NO.200 |
MODEL NO. 400 |
MODEL NO.600 |
|
WIRE SIZE |
1.6mm |
1.6-3.17mm |
2-3.17mm |
|
INPUT SUPPLY |
415v/3p/50-60hz |
415v/3p/50-60hz |
415v/3p/50-60hz |
|
POWDER REQUIREMENT |
7kw |
15k.w |
25k.w |
|
WEIGHT |
126 kg |
199k.g |
226k.g |
|
HIGH-VELOCITY OPTION INSTALLED |
NO |
yes |
yes |
|
ALUMINUM |
4.40 |
8.70 |
12.90 |
|
ZINC |
14.99 |
29.99 |
44.99 |
|
AL-BRONZE |
7.40-7.99 |
14-15.99 |
22.60-23.99 |
|
CR-NI-STEEL |
6.70-7.20 |
13.30-14.40 |
19.90-21.50 |
|
ALUMINUM |
13.04 |
26.07 |
39.10 |
|
ZINC |
13.07 |
26.20 |
39.20 |
|
AL-BRONZE |
10.99 |
21.80 |
32.70 |
|
CR-NI-STEEL |
7.30 |
14.59 |
21.88 |
Types of drive in the Thermal Spray Gun
- Electric drive
- Compressed air drive
In the electric drive model thermal spray guns, there is an electric motor to pass the wire. And in a compressed air drive, compressed air is applied to move the wire at the point of combustion.
Applications of Arc Spray Process
- Bridges(concrete and steel)
- Cement works
- Engineering bond coats
- Mining
- Offshore / Oil & gas
- Pulp and paper
- Steelworks
- Shipbuilding/marine
- Structural steelwork
- Thermal power plants
- Vessels and enclosures
- Waste and recycling
- Wind turbine towers, fences
Features of an arc spray Coating & Arc Spray Process
- The Compact and robust construction of thermal spray gun
- The clear layout of control parts on the angled board.
- Easy handling with good readable indicators.
- Optimized power connectors for high energy efficiency.
- Standard configuration with the feed gear WF4 ensures together with the proven rubber wire rollers a continuous, trouble-free wire feed.
- Wear resistance
- Dimensional restoration
- Bond coat
- Corrosion protection
Benefits of Arc Spray Gun
- No combustible gas supply is required.
- Versatile, reliable, and easy to operate.
- High production spray rates.
- Produces easily to machine coatings.
Arc Spray Gun Industrial Uses
- Power Generation.
- Waste Incineration.
- Electronics.
- Automotive.
- Aerospace.
Arc Spray Gun Manufacturer in India
Airo Shot is a Manufacturer, Supplier & Exporter of Arc Spray Gun, Sand Blasting Machine, Thermal Spray Gun, Metalizing Gun, Flame Spray Gun, Shot blasting Machine, Sand Blasting Cabinet, pressure blast Cabinet, grit blasting machine, and Abrasive Media in India at a low price for sale.
