Portable Shot Blasting Machine

Payment Method :
100% T/T NEFT RTGS IMPS
Transportation Mode :

Air Transport

Sea Transport

Land Transport
Price Range *Min. & Max. Price of Product may varies according to model & requirement of client. Get Latest Price
₹ 40 K - 1 Lakh
Compressed air required at 80 psi :
60 - 217 cfm.
Storage tank capacity :
150 - 1000 Kg
Approx cleaning rate :
4 - 30 sq. mtrs/ hr
Grade :
Manual
Std. blast hose length :
5 - 10 mtrs
Usage :
Sand blasting, Deburring, shot blasting, shot peening etc
  • Blast clean the surface of floor tiles, slates, sandstone, and marble chips to ensure appropriate adhesion with the surface.
  • Engraving, surface etching, and designing on different kinds of stones.
  • Because of the machine's portability, big monuments may be cleaned quickly.
  • Blasting of large components on the job site, such as massive structures, tanks, pressure vessels, bridges, towers, and pipes.
  • Descaling, deburring, and de-flashing are performed on forged and die-cast components.
  • Corrosion, rusting, scale development, welding flux, carbon, and microscopic steel components are all eliminated with a portable shot blaster for sale.
  • After welding, steel structures can be descaled or derusted, enabling on-site painting with different media depending on the desired finish.
  • Blasting removes scale, corrosion, rust, and paint from decks, hulls, and superstructures, among other things.
Additional Information
Color :
As per client requirement
Country of Origin :
India
Brand :
Airo Shot Blast Equipments
Delivery Time :
15-20 Days
Production Capacity :
4-5
Packaging Details :
Polly Pack With Bubble Packing

Leading Supplier & Exporter

Trustseal Verified

ISO Certified

Manufacturer

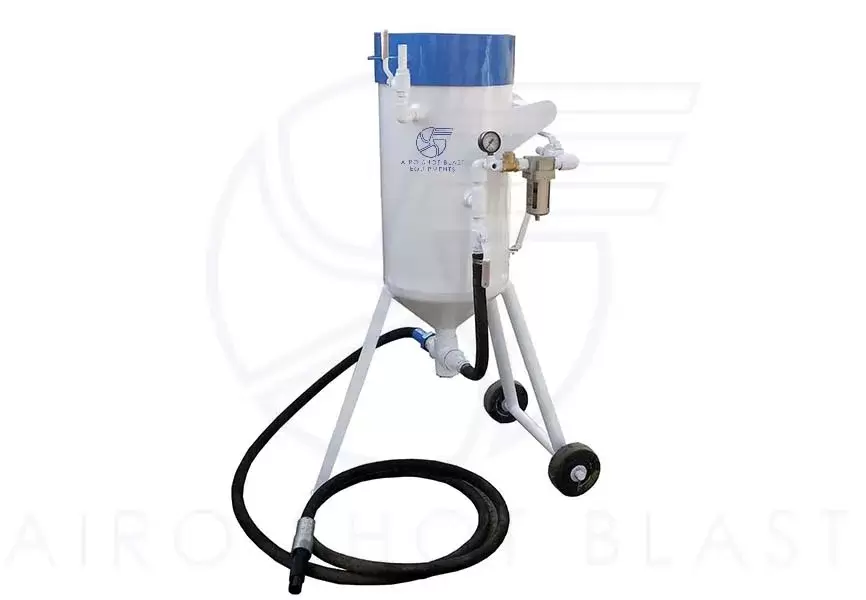

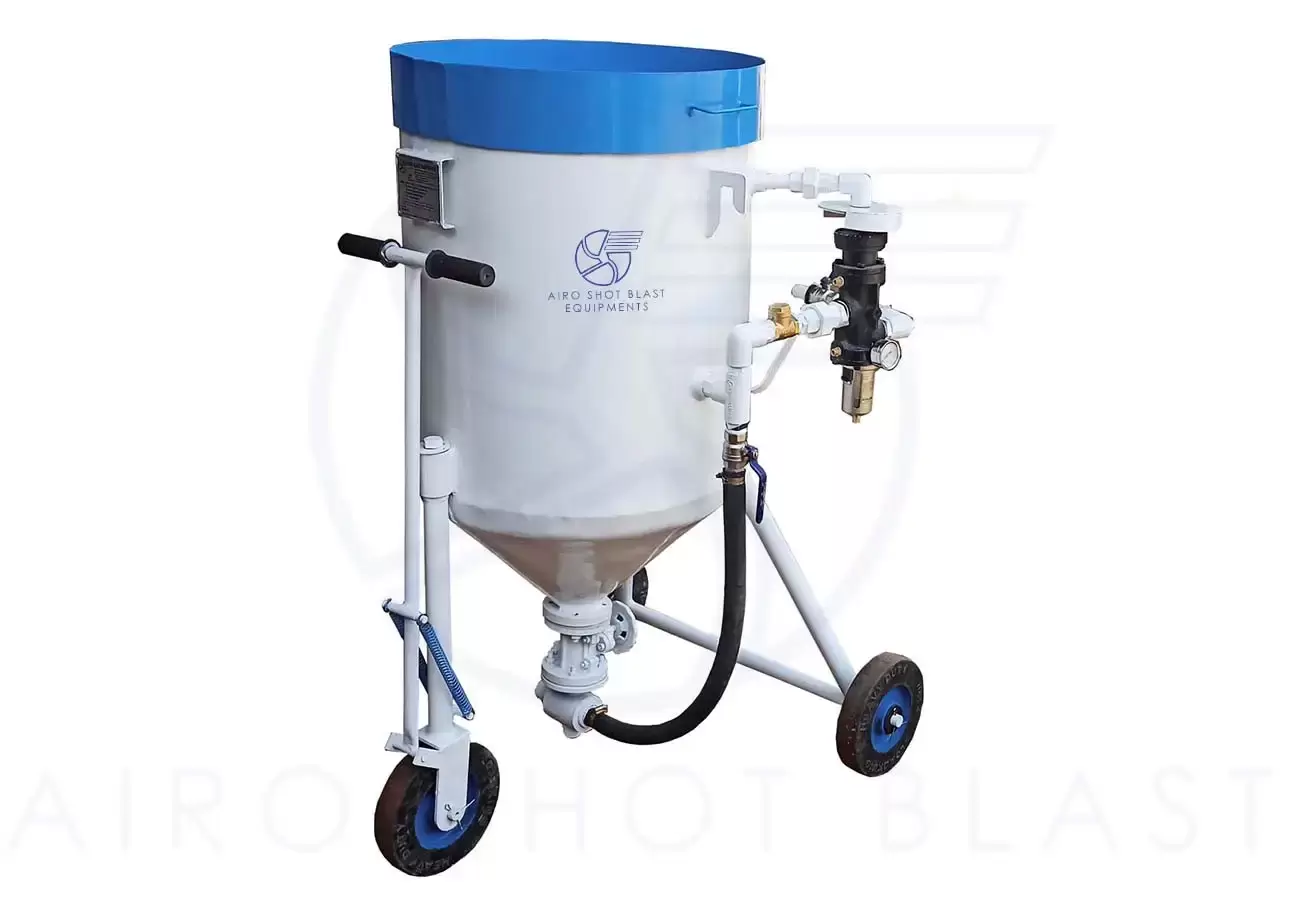

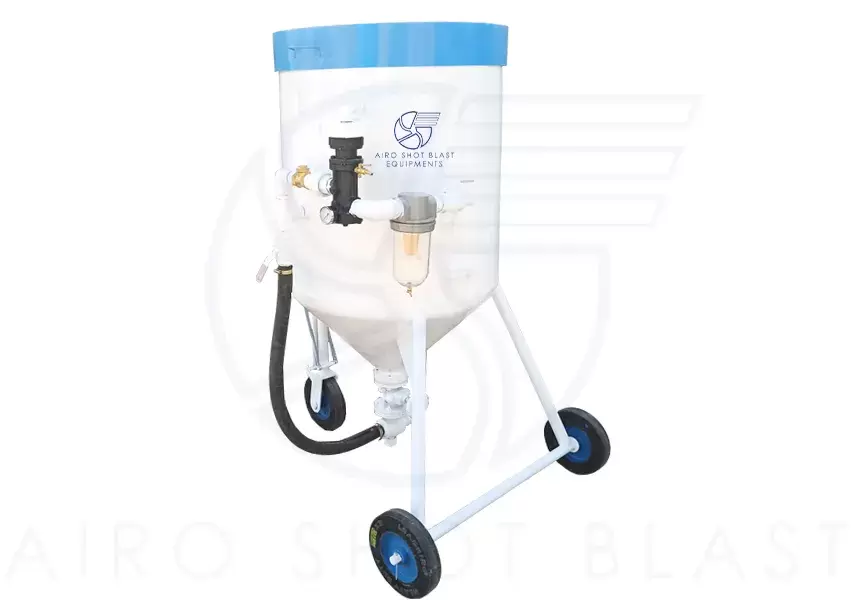

Portable Shot Blaster Machine

Portable shot blasting machine price in India. A portable shot blasting machine or mobile shot blasting machine is a machine that can be movable from one place to another easily. A portable Shot blasting machine is the process of high velocity impelling a stream of shot blasting.  against a surface under very high pressure to smooth a rough surface, roughen a smooth surface & remove the loose particles from the metal surface.

The method that no metal industry owner can function without is Shot Blasting Machine. Portable Shot Blaster is utilized in almost every industry that uses metal such as the aerospace industry, construction industry, automotive industry, foundry industry, rail industry, shipbuilding & many more. Portable shot blasting equipment is used to clean, and induce strength also known as shot peening / polishing the metal surfaces. portable shot blasting machine for sale in India with the best quality at a low price.

Portable Shot Blasting Machine Price

Portable Shot Blasting Machine Price in India depends on the size of the abrasive tank & type of portable shot blasting machine in India for sale. portable shot blasting equipment price also depends on the cleaning rate of the portable shot blasting machine in Jodhpur.

Working of Portable shot blasting machine

As part of this technique of blasting, a controlled stream of abrasive shot material is propelled towards the metallic or steel surface that needs to be shot blasted with. At the centre of the mechanism, there is a blast wheel. The metallic abrasives or shot media are channelled towards the center of the wheel as soon as it begins to rotate. The abrasives are accelerated and flung in the direction of the surface being prepared for finishing from this position onwards. After this procedure is completed, the pollutants and media are redirected into a separation system that houses the dust collector system. Just like the name suggests, the dust collector is responsible for collecting or removing the media that is pulverized, contaminants, or dust. The remaining media gets recycled by returning it to the storage sand blasting hopper where the particles can be kept for use in the future.

Air compressor + selected abrasive garnet + portable shot blasting machine+ appropriate shot blasting nozzle + on/off control + blast surface = remove dust particles from the blast surface.

Specification of Portable Shot Blasting Machine

Metallic

1000 kg

Recommended abrasive Size

12-80 mm

Volume (Liters)

284

Diameter (mm)

760

Approx: Cleaning rate (Sq. mtr./hour)

15-19

Compressed Air Requirement (CFM)

7.08 (250)

Sand (Kg)

460

Height (mm)

1610

Weight (Kg)

245

Orifice

10 mm



The blasting process requires the use of two technologies:

  1.  Wheel Blasting (Airless Shot Blasting) Technique
  2. Air Blasting ( Pneumatic / Air Operated Shot Blasting)

The Shot blasting machine consists of six different components:

  • Blast Wheel
  • shot blasting cabinet
  • Work Handling Mechanism
  • Elevator
  • Separator
  • Dust Collector

The Blast Wheel: The blast wheel is a very important part of every spiral of the shot- blasting machine. The wheels help the abrasive particles which are propelled into the centrifugal force from various types of turbine wheels. If the quality of the wheels is at an excellent level then the efficiency, as well as the cleaning impact, turns out to be excellent.

Shot Blasting Cabinet: As similar to the blast wheel, the shot blasting cabinet is also an essential part of the shot blasting machine. As the high speed of the abrasive particles has to be used in a controlled & vibration-free cabinet. This helps in securing their strength as well as their longevity, these cabinets are made with the advantage of excellent quality of the steel material.

The Work Handling Mechanism: Most of the systems within the portable shot blaster machine exist for moving the parts which depend on the type, size, & quality of the items that need to be used. There is a mixture of types & designs of the shot blasting machines that are used for a separate working process like the Table Type Shot Blasting Machines, Hanger Type Shot Blasting Machine, Tumb Type Shot Blasting Machines, Paver Block Shot Blasting Machines, Cabinet Type Shot Blasting Machines, Spinner Hanger Shot Blasting Machines, Spinner Hanger Double Door Type of Shot Blasting Machines, Stone Shot Blasting Machine, and Coil Shot Blasting Machines.

The Elevator and Abrasive Recovery System: This part occupies a unique position in the machine and ensures that it continues to work properly by assisting the machine in improving the abrasives it uses. The abrasives are gathered at the bottom of the cabinet by a screw conveyor and then delivered to the elevator's base, where they are transported to the separator for further processing.

The Separator Section: The Separator plays a remarkably important role in the abrasive blasting machine. This is the primary part that helps to clean all components before abrasives enter into the blast wheel for reuse.

The Dust Collector: This is the last & the most important part of the shot blasting machine. The dust collector is a part that is utilized primarily for the purpose of filtration. This essential part helps in recovering the dust-filled air from the separator & from the dusty air that gets caught in the cabinet purifying system & releases clean air into the atmosphere to assuring an environment that is pollution-free. If your industry requires the process of abrasive blasting and you are in a requirement of a great quality machine, then it is important to get a basic knowledge of the above-mentioned parts.

Application of Portable Shot Blasting Machine
  • Portable Shot Blaster is used for Removal of rust and heat scale.
  • Weld preparation and cleaning after the weld.
  • Texturing on the surface.
  • Painting, bonding, and plating preparation.
  • Corrosion removal is a term used to describe the process of removing corrosion from
  • Remove the paint.
  • Damaged coatings are removed on a case-by-case basis.
  • Etching on a roll of paper (in conjunction with a lathe).
  • Shot Peen forming.
Portable Shot Blasting Machine Manufacturer

Portable shot blasting machine manufacturers in India at a low price for sale. Airo Shot Blasting Equipments are the largest manufacturer, supplier, exporter of portable shot blasting hopper, sand blasting machines, portable shot blasting machine price in India for sale. Our Prices are economical and we provide a 1-year warranty for our portable sand blasting machines, sand blasting machine.

Portable Shot Blasting Machine in India

Airo Shot Blast is the Best Manufacturers of portable shot blasting machine in India at a low price for sale with the best quality. We are also provide Sand Blasting Machine, portable sand blasting machine, sand blasting cabinet, bench top sand blasting cabinet, tumblast shot blasting machine, pipe cleaning blasting machine,  sand blasting nozzle, shot blasting room, pressure blasting cabinet, thermal spray gun, arc spray gun, flame spray gun, metalizing gun, abraive media.
